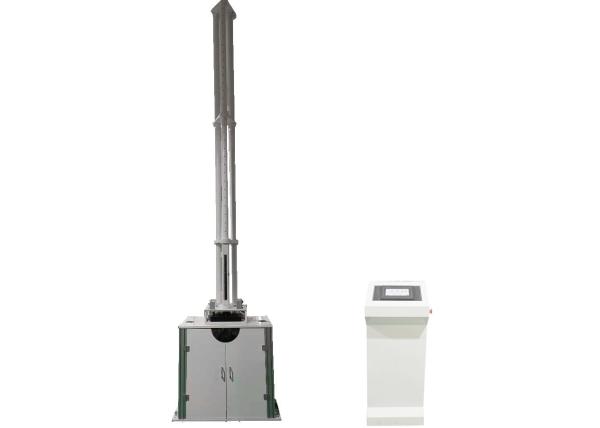

Falling Weight Determination of the Impact Resistance of
Thermoplastic Pipe and Fittings by Means of a Tup
Application:
It is suitable for the determination of impact resistance toughness
of PVC-U, PVC-C pipe, PP pipe, PE pipe, plastic pipe for
underground communication pipe and fittings. Is the test,
production units, building materials industry, scientific research
units of the ideal test instruments. The control part of the tester
is controlled by PLC, touch screen operation display, high degree
of automation, digital preset and display impact height, rising
hammer and drop hammer; pneumatic transmission device is used to
prevent secondary impact, and the secondary impact capture rate is
100%. Equipped with personal safety automatic protection device
(sample door protection, electric shock protection, etc.). The
instrument is simple to operate, safe and reliable, beautiful
appearance, exported to Europe and America and other countries.
Product Description:
Our falling weight test equipment is designed with an automatic
control mode, making it easy to operate and control. It has a
maximum drop height of 3000mm, meets ASTM D2444 requirement. The
equipment is also equipped with the function of preventing
secondary impact and can automatically determine the impact height
and display it in real-time. It is applicable to both the passage
method and the gradient method, making it an ideal test instrument
for building materials industry and scientific research units.
Conform with standards:
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM
D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Technical parameter:
| XJL-1100 |
| Ambient temperature | 10℃-35℃ |
| Hammer(a total of 12 sets) | Hammerhead A | 2.75kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead B | 2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead C | 2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Height of the fall | 0mm-3000mm,error≤±2mm |
| Diameter of the sample | 1100*1100mm |
| Deviation of impact center from fixture center | ≤2mm |
| V-type supporting | 120° |
| source | 220VAC±10% |
| Outline dimension | 1100㎜×600㎜× 5150㎜ |
| Net weight | 600kg |
Support and Services:
We offer comprehensive technical support and service for our Drop
Hammer Test Equipment. Our team of engineers and technicians can
provide expert assistance with installation, maintenance,
troubleshooting, calibration, and more. We can also provide custom
solutions to meet your specific needs.
We are committed to providing the highest level of customer service
and support. Our team is available 24/7 for any questions or
concerns.
For more information, please contact us at your convenience.
Packing and Shipping:
The Drop Hammer Test Equipment will be securely packaged in a
wooden crate for shipping. The box will contain the equipment,
instructions, and any additional parts or accessories.
Additionally, the box will be labeled with the equipment name,
model, and serial number.
The shipping process will include all necessary paperwork such as
an invoice, packing list, and any other documents required for
international shipping. The shipping cost will be determined based
on the destination and type of shipment.
FAQ:
- Q: What is Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment is a testing equipment manufactured
by JHH in Beijing, China, which is used to measure the impact
resistance of objects.
- Q: What is the purpose of Drop Hammer Test Equipment?
- A: The purpose of the Drop Hammer Test Equipment is to measure the
impact resistance of objects in order to ensure product quality.
- Q: What products can Drop Hammer Test Equipment be used for?
- A: Drop Hammer Test Equipment can be used for all kinds of pipe
(PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure
water supply pipe, low pressure transmission pipe, core layer foam
pipe, double wall corrugated pipe, PE water supply pipe), and also
suitable for hard plastic plate.
- Q: What is the accuracy of Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
- Q: What is the maximum testing force of Drop Hammer Test Equipment?
- A: The maximum testing energy of Drop Hammer Test Equipment is
300J.
