ZL-A series of Surface Tension Tester
Applicability:
Physical method is applied to measure the tension of liquid.This
kind of tensiometer is widely used in science institutes and
universities as well as water and power sectors.
Characteristics:
1. Using advanced electromagnetic balance force sensor, with high
precision, high repeatability characteristics.
2. 5 inches wide touch screen control, current environment
temperature, current tension, peak tension, equivalent tension and
other information integration display, operation is very simple.
3. Design platinum plate, platinum ring at the same time two test
methods, can choose one of them, can also choose two at the same
time.
4. Fully automatic operation, eliminate all human error. Automatic
lock liquid interface, display tension curve, automatic lock peak
tension, without any conversion, direct screen display tension
value. Automatic stop measurement, no manual operation, reduce
manual error.
5. Full range automatic calibration, weight calibration support
weights, distilled water and anhydrous ethanol calibration
instrument coefficient.
6. The sample table automatically rises and falls with no noise.
The rising and falling speed can be adjusted at the same speed
through the touch screen (1-300mm/min).
7. Convenient lifting bracket for platinum plate and platinum ring,
which is very easy for users to unload, and the accuracy of force
value can be calibrated by standard weight at any time.
8. One-key peeling function, the number does not jump, zero drift.
9. Environmental temperature automatic compensation, on the basis
of water, ethanol, automatic conversion sample 20 ° C under tension
values.
10. Configure data acquisition software for all Windows systems
(WIN 7,WIN 8,WIN 10,WIN XP).
11. Meet but not limited to the following standards:
GB/T6541-86 ISO1409-1995 GB/T22237-2008 SH/T1156-95
ISO6295-1983 JB/T18396-2001 GB/T5549(ISO 304-1985)
12.Have the patent certificate of the instrument
Parameter:
| Model | SFZL-A1 | SFZL-A2 | SFZL-A3 |
| Test method | Design platinum plate and platinum ring at the same time, can
choose one of them, can also choose two at the same time |
| Control mode | Touch operation, automatic lifting and lowering of sample table,
automatic conversion |
| Lifting speed | 1-300mm/min |
| Display mode | 5 inch color touch screen display |
| Measuring time | Platinum plate method ≤10s. Platinum ring method ≤50 s |
| Sample size required | Platinum plate method ≥3mL; Platinum ring method ≥5mL |
| Test range (mN/m) | 0-1000 | 0-1000 | 0-1000 |
| Resolution ratio(mN/m) | 0.1 | 0.01 | 0.001 |
| Accuracy(mN/m) | 0.1 | 0.01 | 0.001 |
| Repeatability(mN/m) | 0.1 | 0.01 | 0.001 |
Precision of Electronic balance | Domestic 1/1000 grams | Domestic 1/10000 grams | Domestic 1/100000 grams |
| Weighing system type | Electromagnetic force balance |
| Accuracy automatic calibration | Accuracy automatic calibration: provide weight correction,
distilled water and ethanol coefficient correction, temperature
correction |
| Data acquisition software | Standard: the configuration software can operate, store, export
Excel data and print by computer |
| The micro printer interface | Optional |
| Thermostatic temperature control interface | Optional: it can test the value of surface tension at a specific
temperature |
| Equipment weight and size | 20cm*33 cm *42 cm,8kg； |
| Power | 100W |

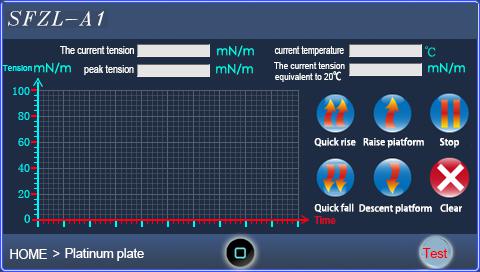

Touch screen interface:
