Brand Name : | JINHAIHU |
Model Number : | JSX-1011K |
Certification : | ISO 9001 |
Payment Terms : | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
Supply Ability : | 30 sets per month |
Delivery Time : | 10 work days |

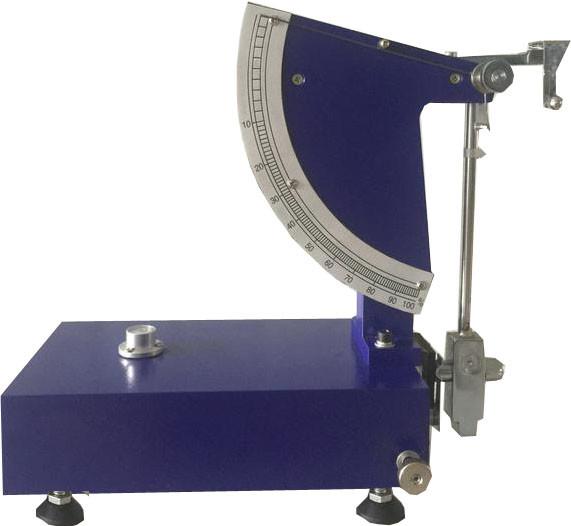

JSX-1011K Rubber Rebound Impact Tester
Features and Uses:
This machine is an energy 0.5J pendulum impact elastic testing machine, which is suitable for measuring the rebound value of vulcanized rubber between hardness 30-85IRHD. Meet the requirements of GB/T 1681 for the determination of resilience of vulcanized rubber and ISO 4662, DIN 53512.
Technical parameter:
Model | JSX-1011K |
Rebound head diameter | Φ15mm |
Impact energy | 0.5J |
Specimen | Φ29mm×12.5mm |
Impacting mass | 0.34~0.35kg |
Impact velocity | 1.4~2m/s |
Apparent strain energy density | 351~463kJ/m3 |
Indication error | ±0.5% |
Dimensions | 320mm× 200mm× 360mm |
Weight | 20kg |
![]() |
