Water Conditioning Tank for Hydrostatic pressure testing machine
I. Function & Applications
Water Conditioning Tank for Hydrostatic pressure testing machine is a necessary equipment for long-time hydrostatic test, pipe
hydraulic test and instantaneous blasting test of various plastic
pipes. It is also a necessary testing equipment for scientific
research institutes, quality inspection departments and pipe
manufacturers.
II. Technical data
| Temperature range | 15～95℃ |
Internal size | 3000x 1500x1500 |
| Resolation ratio | 0.01℃ |
| Temperature control accuracy | ±0.1℃ |
| Control mode | Photoelectric isolation output |

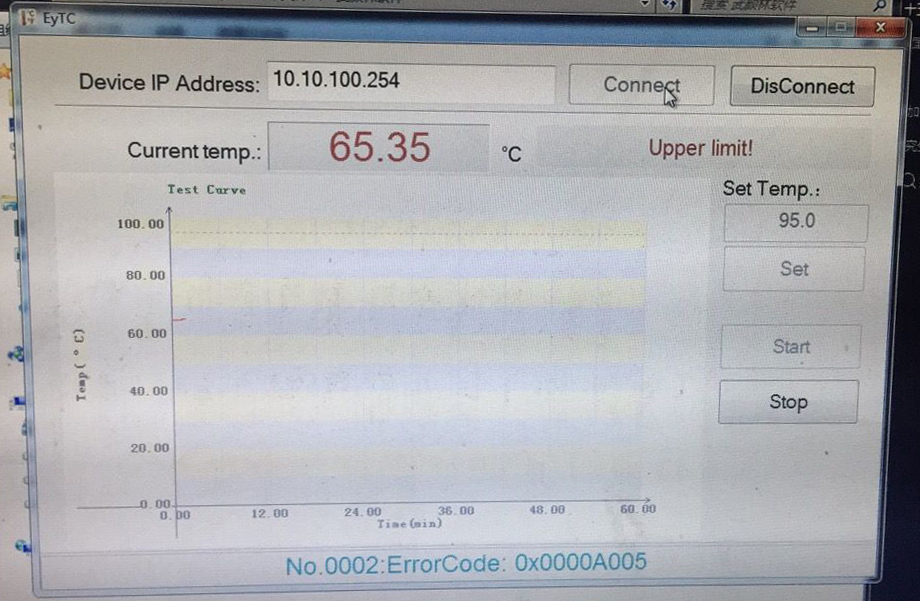

| Communication interface | RS485 (multi-machine mode) or RS232 TTL level interface with CRC
check |
| Communication rate | 4800bpsx 115200bps. the default rate is 57600bps |
| Sampling frequency | 5 times per second, six channels per acquisition |
| Keystroke display | 4.3 inch full color liquid crystal and keystroke keyboard |
| Power Supply Voltage | +24V,1A |
| Routine code | Standard C language software development package, applicable to
single-chip computer or PC system |

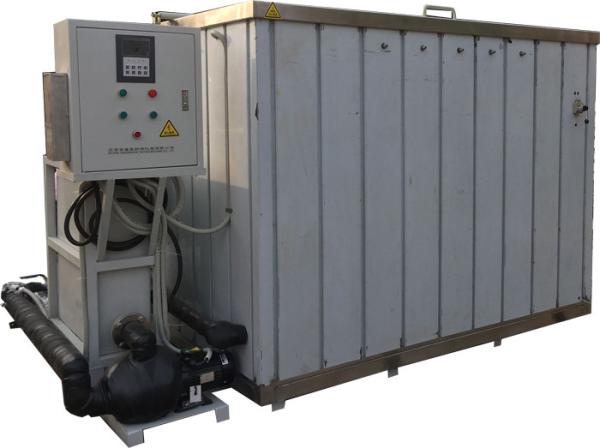

Ⅲ. Structure features of constant-temperature tank:
Constant-temperature tank is composed of the tank body, circulation
pump, heating unit and temperature keeping system.
1. The body is composed of structural frame, bottom, 304# stainless
steel internal bladder and 304# stainless steel outer covering.
2. There are 3 interface(according your require) in the tank’s in
wall.
3. There are loop device and heating unit at both ends of the tank.
4. The cover of the constant temperature tank can be equipped with
air cylinder to achieve automatic lifting which is reliable
and convenient.
5. Separate heating chamber for maintenance of heating elements
without discharging Water.

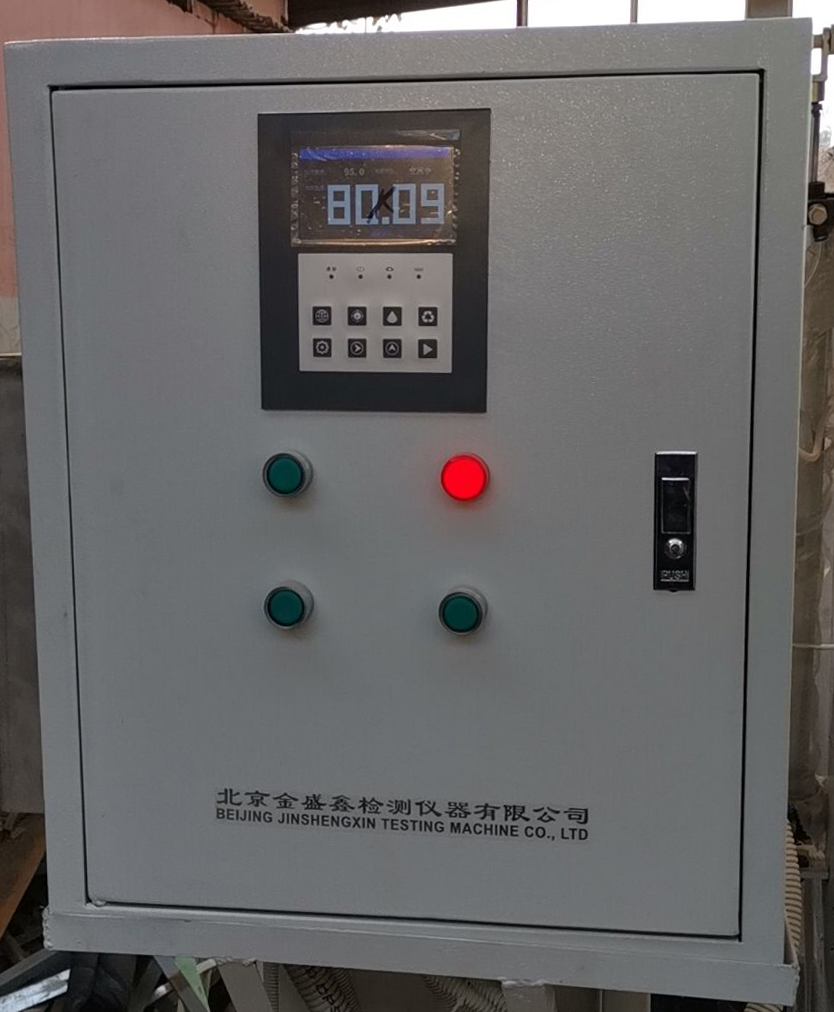

6. Control electric box with safety components from Siemens or
Shneider.
7. There are 3 separated high pressure pipes connections.
8. There are suspension bars to keep samples floating as well
cables suspended.
