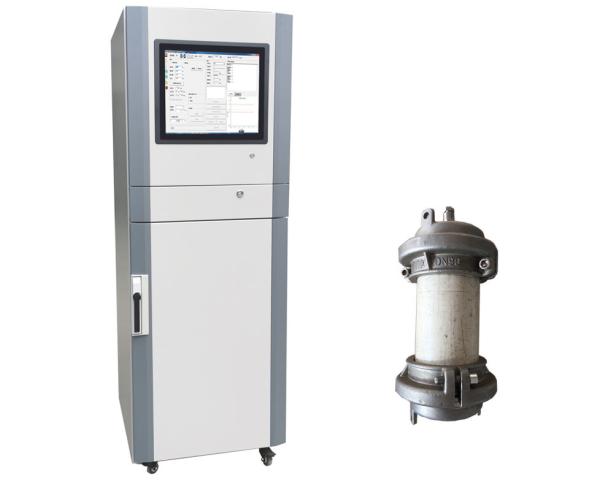

ISO13479 ISO1167 PVC PE Pipe Pressure Burst Plastic Pipe
Hydrostatic Pressure Testing Machine
Ⅰ. Summary:
ISO13479 ISO1167 PVC PE Pipe Pressure Burst Plastic Pipe
Hydrostatic Pressure Testing Machine is nice in appearance, smiple
in structure and of high precision and stability as well as easy to
operate, it is the necessary testing machine for quality inspection
department of kinds of research institutes and pipes manufacturers.
It is suitable for measuring the damage resistance time of
thermoplastic pipes under the conditions of instantaneous hydraulic
blasting and long-term constant pressure. The hydraulic testing
machine adopts computer embedded control. Modular design and
independent control. If there is a problem, as long as the stop
valve of the current station is closed, the normal operation of
other stations will not be affected. It has the functions of
pipeline fracture identification, real-time monitoring, call data
recovery, printing, test result storage, sample pretreatment
setting, etc. This function can store up to 7 days of data
according to the needs of national holidays. This machine is widely
used for internal pressure test of various plastic pipes. It is an
ideal testing equipment for building materials industry, pipe
manufacturers, national inspection departments and scientific
research departments.
Ⅱ. System Feature:
1. Industrial tablet control, direct control.
2. The machine is combined with the "precision pressure control
unit" multi-channel.
3. It is controlled both by PC and “Precision Pressure Controlling
Unit”.
4. Every station controls separately. The most stations can reach
100.
5. It can do hydrostatic test, burst test, 8760 test and so on.
6. The max. pressure can be from 3 to 100MPa.
7. It can distinguish eight testing condition including pressure
up, pressure down, pressure compensation, pressure exceeding,
running, ending, leakage, and exploding. And also it can judge both
effective and ineffective time parameters automatically. (The
effective time means the time of the pressure within the setting
pressure.)
Ⅲ. According standards:
ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479
Ⅳ. Technical parameters:
| Pipe diameter range | Φ10~Φ1800mm |
| Working stations | 5, 10, 15, 20, 25, 30 or 50 can customized |
| Operation mode | PC control |
| Pressure range | 0.2~10MPa (or customized) |
| Pressure resolution | 0.001MPa, 0.01Bar |
| Pressure control accuracy range | -1%~+2% |
| Measuring range | 5%~100% F.S. |
| Timing range | 1s~9999H 99M 99S |
| Timing accuracy | ±0.1% |
| Display resolution | 1s |
| Min. Time setting unit | min |
| Temperature control system | 15~95℃ with cooling system |
| Temperature control accuracy | ±0.5℃ |
| Power supply | 380V, three-phase four-wire system |
Ⅴ. Standard Configuration:
1. Pressure control host;
2. Pressure station;
3. End caps;
4. Constant temperature medium tank
5. Cooling system.
