Motor accessories combustion tester/Interior Materials flammability test machine

Scope of application:

This tester is designed and manufactured according to FMVSS302/SAE J369. Apply to identify vehicles (cars, multipurpose passenger car, truck and bus) interior material horizontal burning test. Car inner decorations combustion tester is composed of test part and control part adopts the integrated design, convenient installation and debugging. A high degree of automation control system, with functions of automatic ignition. Temperature and time digital display, easy observation records, stable and reliable use. with a fuming hood, which is easy to ventilation and smoke after your experiment, in order to keep a good in-laboratory condition.

Standards:

FMVSS 302 Federal Motor Vehicle Safety Standard 302

ISO 3795

GB / T8410-2006

SAE J369: 2003 --- American Society of Mechanical Engineers

HES D6003-99 --- Honda Motor

NES M0094: 2003 --- Nissan;

ES-X60410: 2001 ---- Mitsubishi Motors

TRANS / WP29 / 78 / Rev.1: 1997 Appendix 4 ---- EU

TL 1010: 1997 --- Volkswagen;

GS 97038-2003 ---- BMW;

GM 9070P: 1996 --- General Motors

MS300-08 --Hyundai

Features:

1. Advanced industrial appearance and control design;

2. Stainless steel structure cabinet;

3.The number of ventilation holes: 10, diameter 19mm.

4.Toughened glass door is easy to observe the test.

5. Flame application time and timing.

6. Time can be adjusted in the range of 0-9999 seconds.

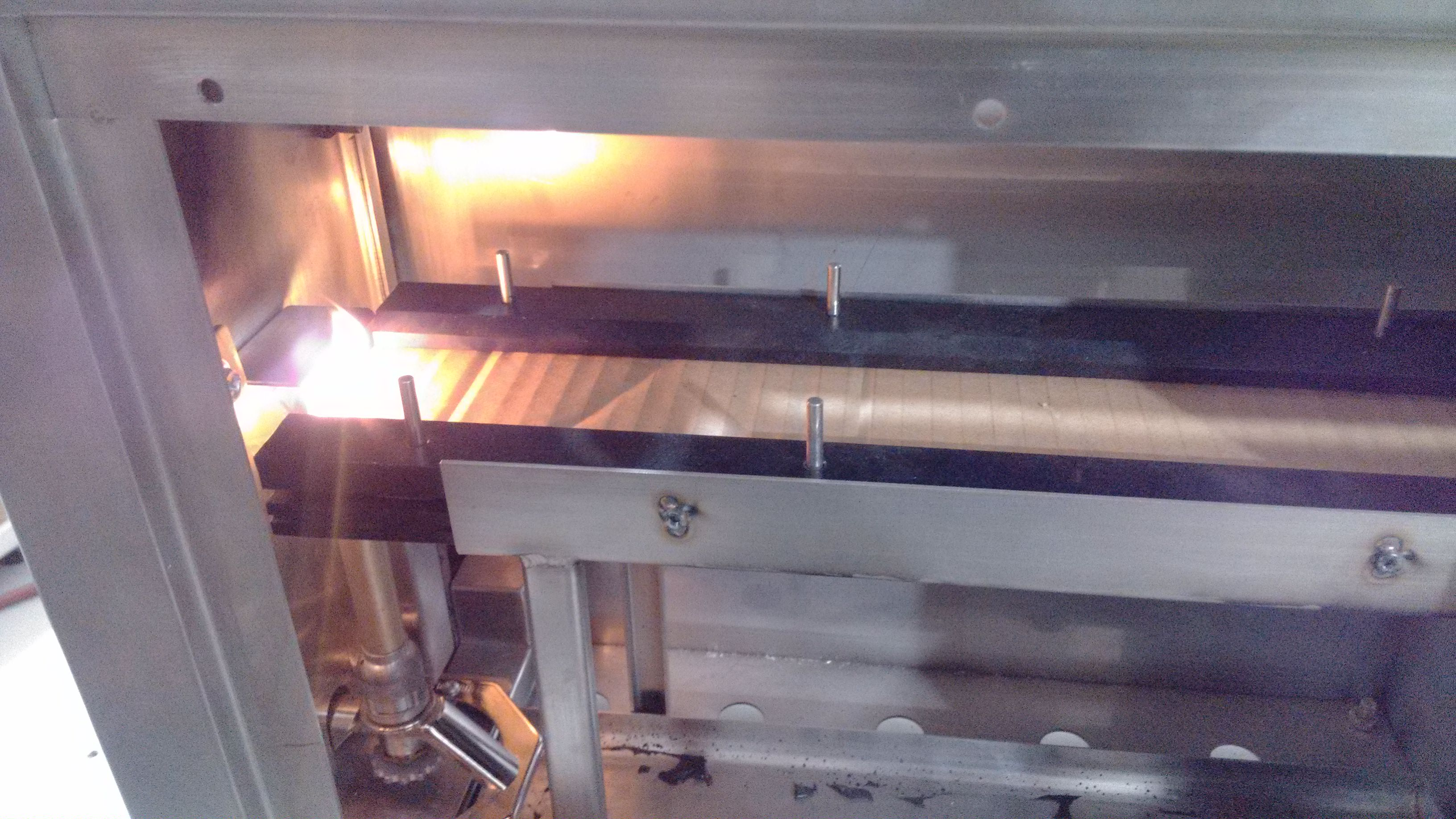

7.Equipped with:stainless steel sample holder and sample templates;

8. The steel ruler is built-in the chamber; accuracy: 1mm; It’s easy to read the length; do not need to take out the sample to measure the length;

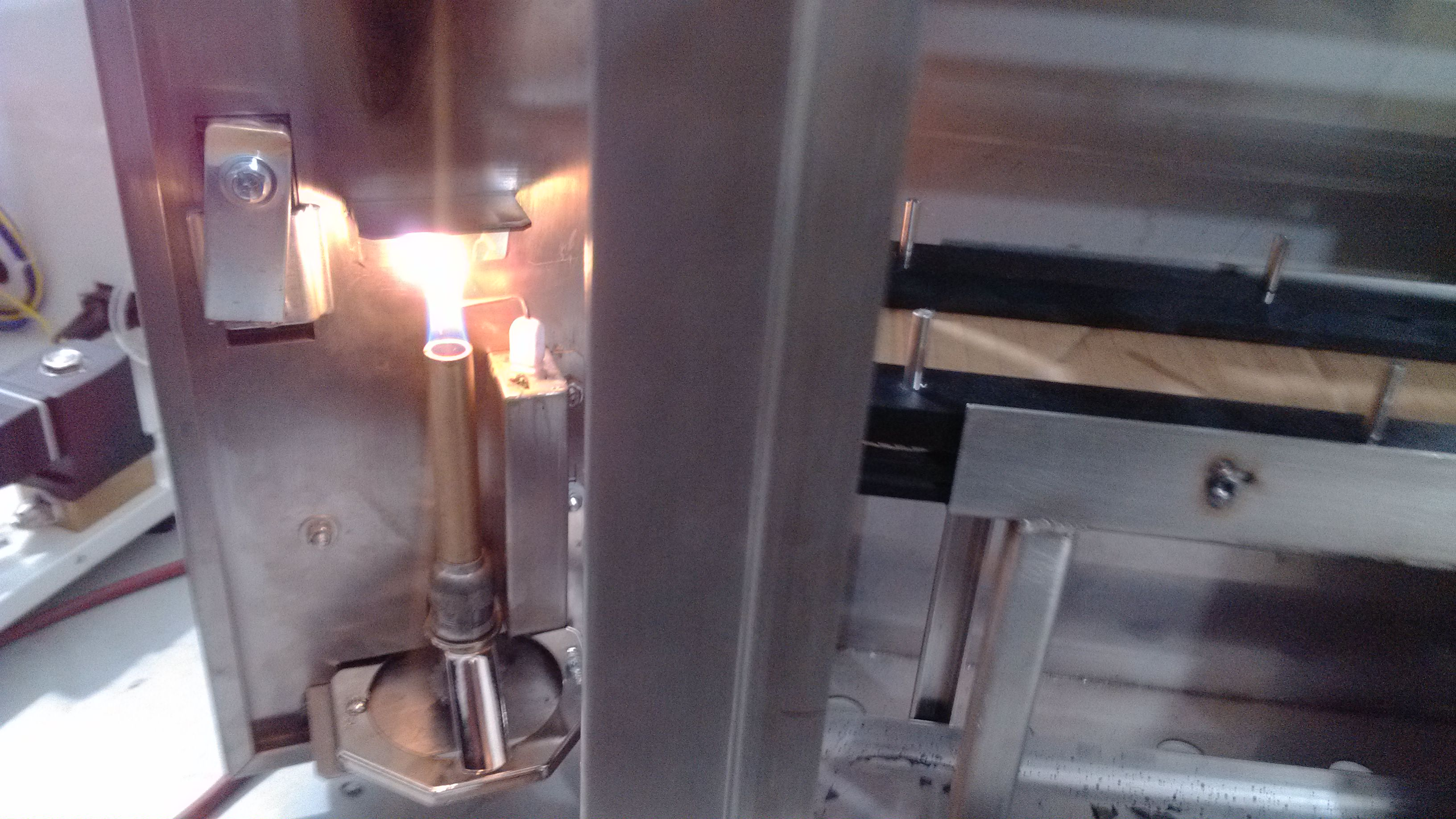

9. Humboldt burner imported from the USA and the adjustment range is 20mm-100mm.

10. Imported brand flow regulating valve, precisely controlling the flame height;

11. Imported brand pressure gauge and pressure regulating valve;

12. The temperature in the test chamber is detected by the built-in thermocouple according to the standard requirements.

13.PLC+ touch screen automatic control system

1).Automatic timing, automatic ignition, ignition abnormal protection;

2).6 sample test data is saved;

3). Real-time monitoring of test data, query six samples data, query.
