ISO13479 ISO1167 PVC PE Pipe Pressure Burst Plastic Pipe
Hydrostatic Pressure Testing Machine
Ⅰ. Product description:
Hydrostatic Pressure PVC Pipe Testing Equipment is nice in
appearance, smiple in structure and of high precision and stability
as well as easy to operate, it is the it is the necessary testing
machine for quality inspection department of kinds of research
institutes and pipes manufacturers.
Ⅱ. Principle
After the sample is state adjusted, maintain a specified time under
the specified constant hydrostatic pressure (hydraulic pressure of
internal water pressure) or until the sample is damaged.
The sample shall be maintained in a specified constant temperature
environment throughout the test.
This constant environment can be water (water-water test), air
(water-air test), or other liquid (water-other liquid test).
This equipment is using water.
Ⅲ. Technical data:
| Pressure range of the main engine | 0~10mpa (adjust at random) |
| Control range of water tank | Rt~95℃ |
| Pressure resolution of main engine | 0.001mpa |
| Temperature control accuracy of water tank | ±0.5℃ |
| Constant pressure range of main engine | <+2%,-1% of the set value |
| Temperature uniformity of the water tank | ±0.5℃ |
| Constant pressure accuracy of main engine | ≤±1% |
| Temperature resolution of water tank | 0.1℃ |
| Timing range | 0~9999.59 hours |
| Timing accuracy | ≤0.1% |
| Water tank | The material is stainless steel |
| Insulating layer thickness of the water tank | Thicker than 83mm,thinner than 95 mm |
| Test stations | 50 roads at most for single machine |
| Power supply of pressure control system | Ac220v,1.5kw |
| Power supply of temperature control system | Ac380v,18kw |

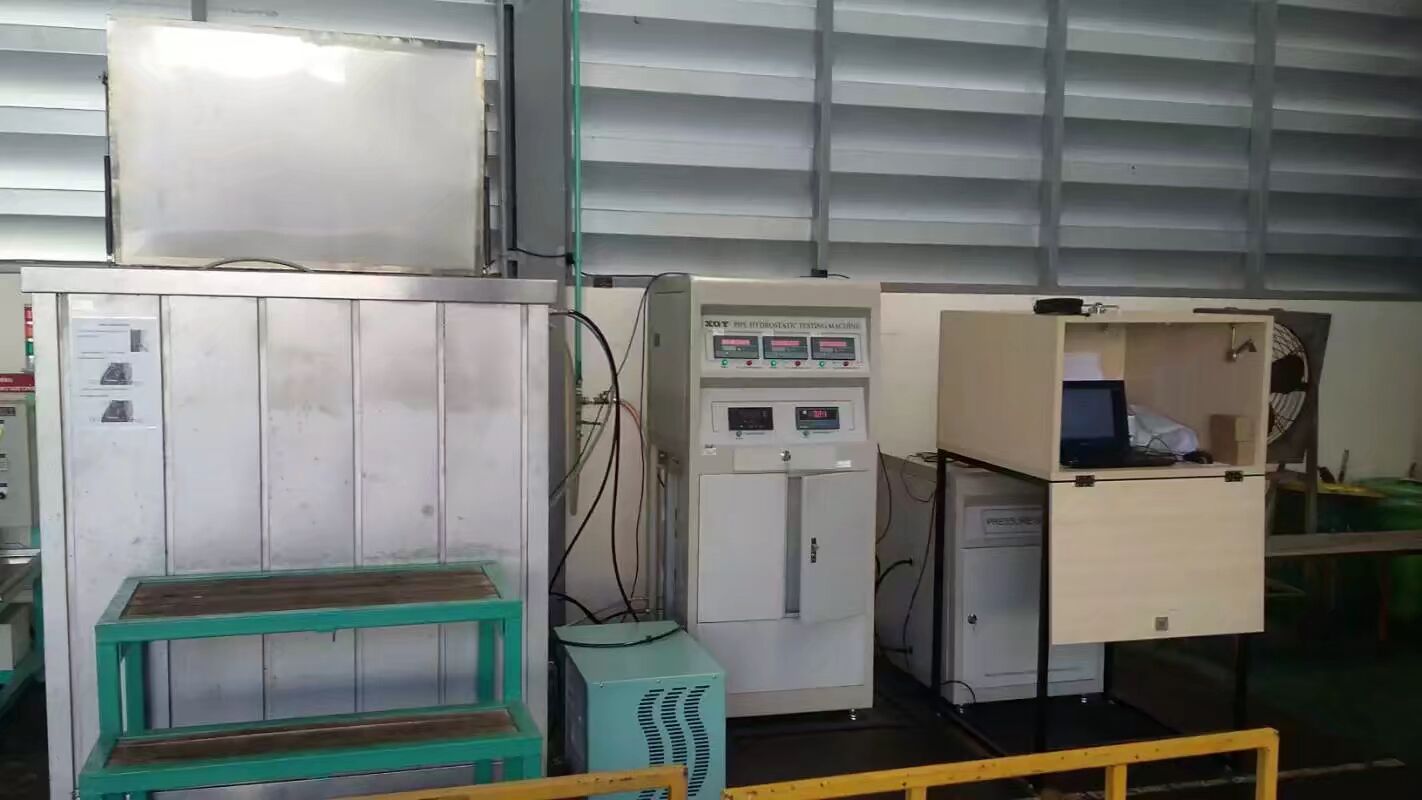

1. Pressure control system;
2. Temperature control system;
3. Constant temperature tank;
4. End caps;
5. Refrigeration system;
6. PC, printer, software, manual etc.
Ⅴ. Features
Features of main frame
1. Meter and computer docuble controll.
1. Continuous barrier-free work to ensure the integrity of the
test.
2. Easy to operate and maintain for branch stations are independent
from each other.
3. Main components are imported from Europe or America, which are
stable and reliable.
4. On the basis of the meters, the instrument is also equipped with
brand laptop or desktop which is connected with the meters by
serial ports.
5. Pressure-time curve and Pressure-temperature curve can be drawn.
6. Pressure value can be inquired real-time.
7. Automatic regulate the pressure on the computer.
8. Test reports can be printed.
9. Computer can stop working at any time, because the meters of the
main frame can still work.
10. The PC is installed with the latest version of hydrostatic
pressure test software in Chinese or English which are free to
upgrade for life long.
End caps:
1. Include bolt, O ring ,vent valve etc all assembled complete.
2. Fixture structure:
Half round pot form,easy fit out , no leakage, convenient
operation.
