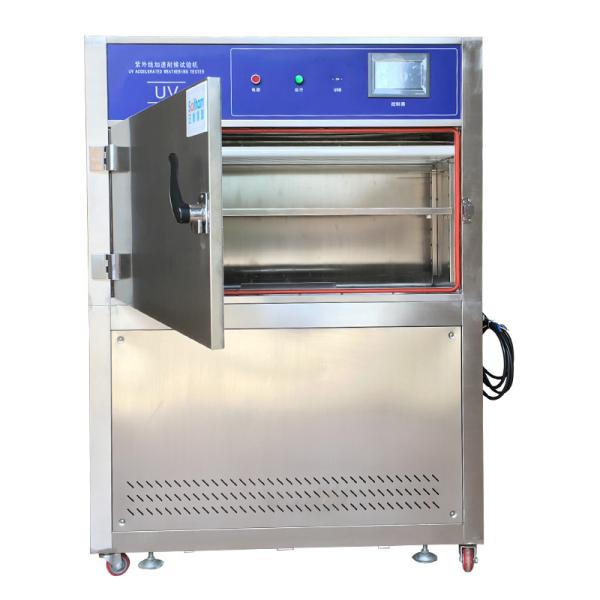

    LCD Uv Aging Chamber , USB Accelerated Weathering Tester Equipment

    UV Aging Chamber/UV Tester/UV Accelerated Weathering Test Equipment


    Profile

    The UV Accelerated weathering test chamber stimulates dew and rain with consideration for humidity and/or water spray equipped with a fluorescent UV lamp which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It’s most widely used weathering tester to test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation. The source adopts 8 pieces of UV lamps of 40W as the light source. The lamps are distributed on the two sides of machine, 4 pieces for each side (UVA-340 and UVB-313 optional), 8 pieces in total .


    Main technical parameters


    ItemUV Lamp aging test chamber
    Model

    JSX-UVA-115-I

    Interior sizeW1140 X H500 x D500mm
    Exterior sizeW1350 X H1560 x D600mm
    Weight120kgs
    Controller

    LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes.

    USB interface

    Operation button

    Alarm indicator

    Irradiation timer

    Temp. control modePID self-adjustment SSR control
    Temp. rangeRT+10℃ ~ 70℃ (adjustable)
    Temp. deviation±2.0℃
    Temp. fluctuation±0.5℃
    Humidity range≥93%R.H (not adjustable)
    Temp. uniformity±1℃
    Temp. fluctuation±0.5℃
    Distance between lamps70mm
    Distance between samples and lamps50mm±3mm adjustable
    Irradiation range≤1.0W/m2 adjustable
    Irradiation lamp

    Q-lab or Atlas Lamp UVA-340, L=1200/40W, 8pcs (average service life: 1600hrs)

    UVA-340: 315 ~ 400nm; (UVB-313: wavelength 280~315 optional)

    Temp. control methodPID self-adjustable SSR control
    Depth of water channel25mm under auto-control
    Test time0~999 H 99 min (adjustable)
    FunctionTemperature, light irradiation, condensation, spray test cycle is adjustable
    Black board Temp.50℃ ~ 70℃ (temperature inside the chamber plus 20℃ ~ 25℃)
    Irradiance probe (optional to purchase)

    Monitoring the real-time irradiance

    Fig. - Lamp replacement method.



    Wavelength (nm)

    UVA-340 tube optimally simulates sunlight in the short-wave UV range.


    Wavelength (nm)

    UV-B lamps use short-wave UV to achieve the fastest accelerated aging, useful for particularly durable testing or quality control

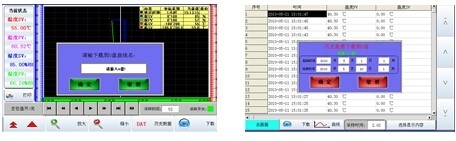

    Test curve download Test data download
