Touch Screen Semi Auto Vickers Hardness Tester Machine With
Motorized X Y Table
Semi-Auto Vickers Hardness Tester, With Motorized X-Y Table,

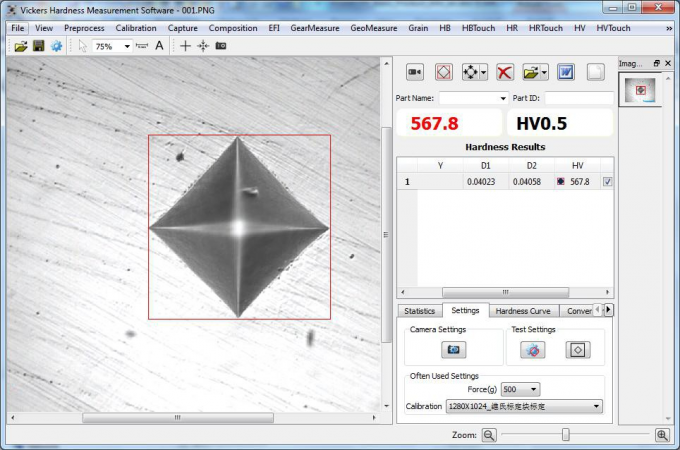

Software And CCD Camera
Functions & Features:
● Touch Screen, full color multi-function OLED display
● Motorized X-Y testing table, Automatic measuring process.
● 1.3 megapixel microscope measurement camera
● Automatically Test: control the test and turret by software
● Automatic turret function: The objective and Indenter can
automatically switch.
● High-definition optical system, the brightness of light source
can be adjusted in 20 levels.
● With hardness value conversion function, tolerance judgment by
hardness upper and lower limit.
● Corner length D1 and D2 automatically calculate and input
● Measurement results can be output by the printer.
● Meet or exceed ISO, ASTM and JJS standards.
Application:
● Surface coating, steel, non-ferrous metals, ceramics, alloys,
etc.
● Heat treatment, carbonization, quenched hardened layer, nitrided
layer
● Small and thin parts
● Hardness test such as on the depth and gradient of the carbonized
layers and quenched hardened layers.
Technical Parameters:
| Model | LMHVS-5Z / 10Z / 30Z / 50Z |
Test force | LMHVS-5Z: 0.3Kgf (2.94N),0.5Kgf(4.9N),1Kgf (9.8N),2Kgf (19.6N), 3Kgf(29.4N),5Kgf (49N) |
LMHVS-10Z: 0.3Kgf (2.94N),0.5Kgf(4.9N),1Kgf (9.8N),3Kgf(29.4N), 5Kgf (49N),10Kgf (98N) |
LMHVS-30Z: 1Kgf (9.8N),3Kgf(29.4N),5Kgf (49N),10Kgf (98N),20Kgf (196N),30Kgf (294N) |
LMHVS-50Z: 1Kgf (9.8N),5Kgf (49N),10Kgf (98N),20Kgf (196N),30Kgf (294N),50Kgf (490N) |
| Measuring Range | 8-2900HV |
| Conversion Scale | Rockwell, Superficial Rockwell, Brinell |
| Indication of Hardness Value | Large LCD screen display |
| Min measuring unit | 0.0625µm (with objective lens) |
Test microscope magnification | 200X(Measuring),100X(observation) |
| Data output | Inside Printer |
| Load control (force applied) | Automatic(Loading, Dwell, Unloading) |
| Max Height of Specimen | 165mm |
Distance of Indenter to outer wall | 130mm |
| Power supply | AC220V+5%,50-60Hz |
| Carried Standard | GB/T 4340, ISO 6507, EN ISO 6507, ASTM E-384, JJG151 |
| Net weight | About 48Kg |
Standard Accessories:
| Item | Quantity | Item | Quantity |
| Objective 10x, 20x | 2 | Motorized X-Y table | 1 |
| Eletric Eyepiece 10x | 1 | Testing table | 3 |
| HV Indenter | 1 | 12V20W light bulb | 1 |
1.3 megapixel camera & Software kit | 1 | Power cable & 2A fuse | 2 |
| Weight | 3 | Paper for thermal printer | 1 |
| Rod of Weight | 1 | Screwdriver & Level vial | 2 |
| Hardness Block | 2 | Manual & Certificate | 2 |
