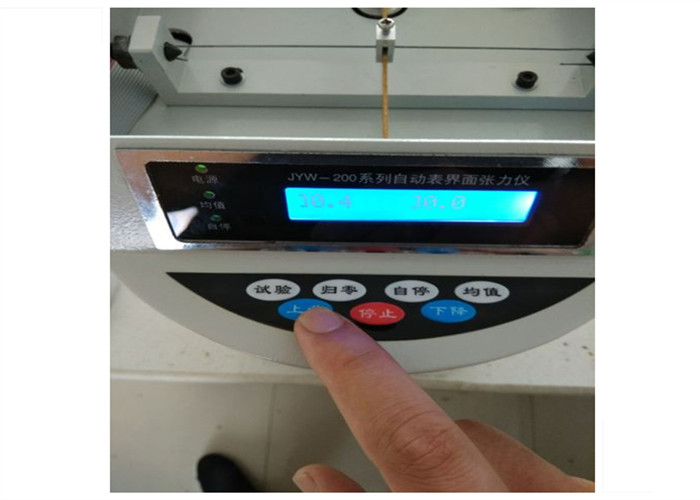

Iso 1409 Certificated Surface Tension Tester/Water Tensiometer

I Technical data:

1) Model number: JZYW-200C

2) Measuring range: 0-199.9mN/m

3) Minimum resolution: 0.01mN/m

4) Radius of platinum circle: R9.55mm

5) Radius of platinum wire: r0.3mm

6) Power supply: 220V 50Hz

7) Relative error: within ±1%

8) Size and weight: 200*260*300mm 10kg

9) Temperature requirement: (20±5)oC

II Performance:

1) Tension showed by LCD

2) Peak value holding

3) Automatic averaging

4) test-bed moved automatically and auto stop

III Standard:

JB/T9388 ISO/1409

IV Applicability:

Physical method is applied to measure the tension of liquid.This kind of tensiometer is widely used in science institutes and universities as well as water and power sectors.

Ⅴ Configuration

   Beijing Jinshengxin testing machine Co., Ltd, covering 20,000 square meters, is located in Jinhaihu Town of Beijing. Since founded in 2003, our company has been devoted to the research, development and manufacture of testing machines for metallic and non-metallic materials, especially building materials. We have kept a close cooperation bond with many colleges and research institutes for technical exchange.

   Through these years' efforts, our company has gained rapid development because of outstanding talents and advanced science & technology. Now it has become one of the best companies in the area of testing machines. All of our products have passed the evaluation of CMC and ISO9001. The brand of our products is "Jinhaihu". Our main products are Universal tensile testing machine, pipe hydrostatic pressure testing machine, impact testing machines, melt flow indexers, heat distoration temperature-Vicat softening point testers, liquid analyzers, prototype machines, etc. For the reliable quality and high precision, our products are very popular in China and abroad.

  If you want to buy testing machines, our products are your first choice!

  Looking forward to cooperating with you!
