I Applicability:

XJL-300C drop-hammer impact tester is used for the impact test of non-metallic materials, such as plastic, glass, pottery, etc. At the same time, it can also carry out the impact test on the same materials to make a comparison among the qualities of the materials. It is suitable to both passing method and gradient methods.

II Technical Data:

Temperature Requirement: 10~35^oC

No intense vibration source or strong electromagnetic field round

No corrosive medium and assure the ventilation of electric cabinet

Power Supply: AC220V±10% 2A

Hammer Weight: 0.250~16.000kg 0.125kg/ increment

Travel of Working Table: 0-400mm

Specimen Diameter: φ10~400mm

Hammer Diameter: D25,D90

Max. Impact Height: 2000mm

Positional Error: ±2mm

Display:Clour touch screen

Standards: GB/T11548 GB/T10002 GB/T13664 GB/T16800 GB/T14152 GB/14153 ISO04422 ISO3127

III Features:

This machine adopts PLC automatic control, such as automatic prevent secondary impact hammer, automatic hang, automatic hammer to set height, Automatically detects the door is closed, etc;Big inch color touch screen can switch in both Chinese and English at the same time, the real-time display information such as height setting parameters such as impact experiment;Can according to the impact energy, impact height and impact hammer mass any two quantity to calculate the third term, convenient for the operator to select conversion.The machine with good reliability, high precision, in line with the professional standard GB6112-85 drop hammer impact testing machine technology conditions of standard requirements.

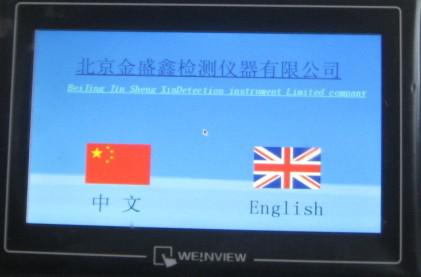

Colour touch screen
