    UTM Material Strength Testing Machine Celtron Load Cell Sensor 1/300000 Resolution

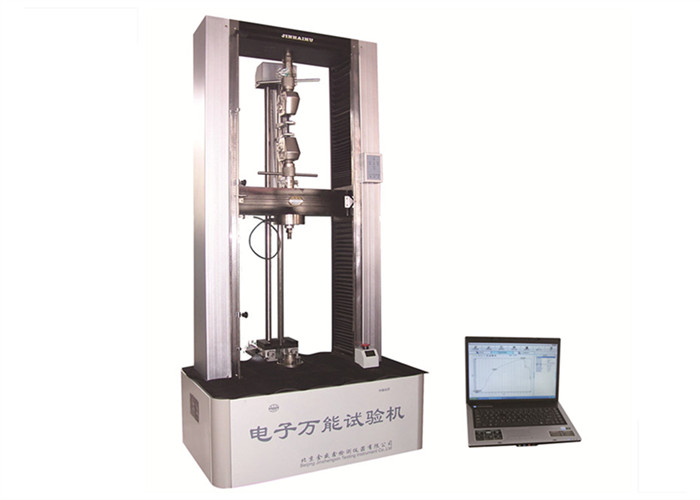

    Product pictures

    XWW series computerized electronic universal testing machines are designed and manufacture

    according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material

    for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.


    Maintechnical parameter of Computer Controlled Electronic Universal Testing Machine/UTM:

    ModelXWW-5, 10, 20KN
    TypeDoor model
    Max. Load5KN, 10KN, 20KN
    Unit SwitchoverTone,Kg,g,Kn,Lb; mm,cm,inch
    Accuracy Grade0.5%
    Force-measuring Range0.4%~100%FS
    Force-measuring Accuracy≤0.5%
    Deformation-measuring Range2%~100%FS
    Deformation-measuring Accuracy1%
    Crossbeam Displacement Resolution0.001mm
    Crossbeam Speed Range0.01~500mm/min
    Displacement Speed Accuracy≤ 0.5%
    Test Width400mm (or according to order)
    Tensile Space600mm
    Compression Space900mm (or according to order)
    ClampsWedge Grip,Compressing Attachment,Bend accessorises
    PC SystemEquiped with brand computer
    Flat-specimen thickness

    0~7mm

    Power SupplyAC220V
    Standards

    ISO 7500-1 ISO 572 ISO 5893 ASTMD638695790

    Size of the host860*560*2000mm
    Weight400Kg

    Introduction of the UTM software:

    Universal Testing Machine Software (more than the following)

    • This software is of powerful function, including programs of tensile, compressing, bending, sheering, peeling tests on metallic, non-metallic, and other various materials.
    • Based on Windows, simple operation and easy to learn.
    • Languages switch between Simplified Chinese, traditional Chinese and English.
    • Ten user accounts and passwords can be created.
    • It has the protection function of overloading: overloading value can be set by user.
    • The units of force or displacement can be switched easily. The changes in stress and strain are displayed real time.
    • Curves, like Load-displacement, load-time, displacement-time, stress-strain, load-tensile length, etc. can be switched between each other at any time.
    • Force value dual-correction system: auto set and zero, auto identification and import of correction data.
    • It is suitable for many testing standards, such as ISO, JIS, ASTM, DIN, GB etc.
    • Compare among the test curves in the same group though piling them up.

    Auto zero set. Max force, upper-yield strength, lower-yield strength, anti-tensile intensity anti-compression strength, elasticity modulus, percentage of elongation, etc. are calculated automatically.


    System configuration

    1 Machine main unit

    1.1 AC servo motor, driver 1 set

    1.2 Speed reduce system 1set

    1.3 Load cell 5, 10, 20KN 1pc

    1.4 Precision precision ball screw 2sets

    1.5 Control board 1set

    2 Servo control system 1set

    3 Gear system 1set

    4 PC 1set

    5 Inkjet color printer 1set

    7 Tensile test accessories 1set

    Compression accessorises 1 set

    Bend accessorises 1 set

    8 Large extension extensometer 1 set

    9 Software installation CD 1set

    10 Technical documents 1set

    including : Instruction Manual

    Manual of the Software

    Certificate

    11 Tool kit 1 set
