Universal Tensile Testing Machine Manufacturer/Universal Tensile Tester

Description:

The XWW series Universal Tensile Testing Machine Manufacturer/Universal Tensile Tester is applicable to the measurement and analysis of mechanical performance not only metal, non-metal material, but also composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, wire and cable, textiles, fibers, plastics, rubber, ceramics, food, medicine packaging, plastic pipes, plastic doors and windows, geotextile, film, wood, paper, metal materials and manufacturing. According to GB, JIS, ASTM, DIN, ISO and other standards, it can automatically strike the maximum test force value breaking force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation, tensile modulus, flexural modulus test data etc.

Maintechnical parameter of Universal Tensile Testing Machine Manufacturer/Universal Tensile Tester​:

Feature:

1 Main Unit:

This machine adopt double space structure, the upper space used for tensile test, the lower space used for

compression and bending test. The beam moving speed is stepless adjust. The drive system consist of

servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency,

low noise, no pollution.

2 Electrical measurement and control system

2.1 With protect function of overload,over current, over voltage, displacement limit, emergency stop, etc .

2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.

2.3 When finished testing, automatic stop.

2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen

(PWM), and other functions in one

2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly

integrated control circuit

3 Software and software interface

3.1 Based on Windows operation platform, the software adopting modulus design, with simple operation

and powerful functions

3.2 The control panel has defined all the control parameters, data dealing method and report content and

form, different test can be set according to the control panel.

3.3 Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods

and can customized according to special requirements

3.4 With internet interface, can transmit, save and print data. Can connect enterprise Internal LAN and

Internet.

3.5 Can edit and set the report form freely, also can print the testing data

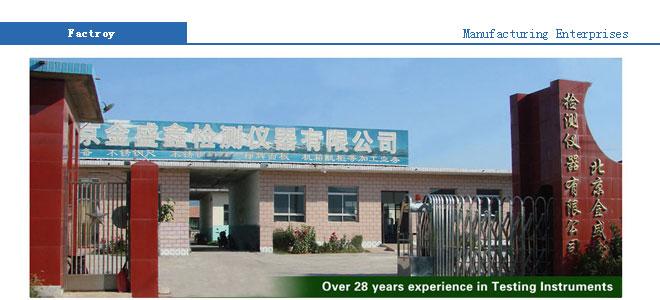

   Beijing Jinshengxin testing machine Co., Ltd, covering 20,000 square meters, is located in Jinhaihu Town of Beijing. Since founded in 2003, our company has been devoted to the research, development and manufacture of testing machines for metallic and non-metallic materials, especially building materials. We have kept a close cooperation bond with many colleges and research institutes for technical exchange.

   Through these years' efforts, our company has gained rapid development because of outstanding talents and advanced science & technology. Now it has become one of the best companies in the area of testing machines. All of our products have passed the evaluation of CMC and ISO9001. The brand of our products is "Jinhaihu". Our main products are Universal tensile testing machine, pipe hydrostatic pressure testing machine, impact testing machines, melt flow indexers, heat distoration temperature-Vicat softening point testers, liquid analyzers, prototype machines, etc. For the reliable quality and high precision, our products are very popular in China and abroad.

  If you want to buy testing machines, our products are your first choice!

  Looking forward to cooperating with you!
