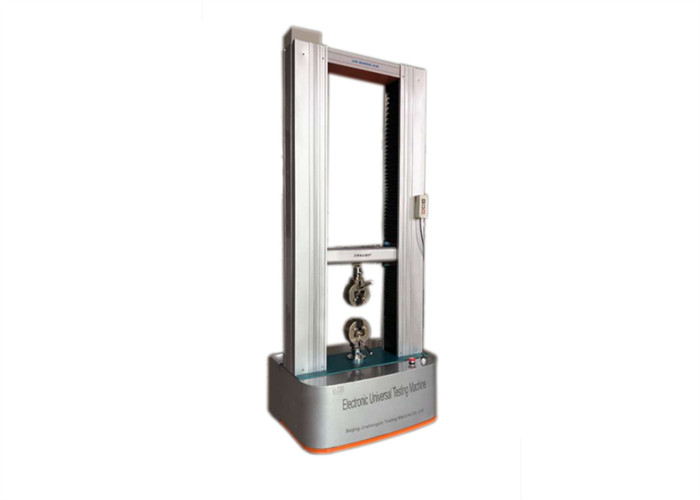

Computer Control Double-Armed Electronic Universal Testing Machine
Description:
The XWW series Computer Control Double-Armed Electronic Universal
Testing Machine is widely used in the field of rubber, plastic, PVC
pipe, board, metal wire, cable, waterproof materials and film
industry. By using different kinds of accessories, it can do the
test of tensile, compression, bending, shear, peeling, tearing and
all other kinds of testing. This is a common testing equipment for
all kinds of lab and quality control department to determine the
material quality and mechanics analyzing.
Maintechnical parameter of Computer Control Double-Armed Electronic
Universal Testing Machine:
| Model | XWW | | Maximum load | 50KN, 100 KN (optional) | | Accurate | 1 grade /0.5 grade | | Effective measuring range | Force from 1% to 100% (1 grade) / from 0.4% to 100% (0.5 grade) | | Measuring accuracy | The value ±1% / the value±0.5% | | Tester resolution | Max load 1/200000, constant the resolution | | Load sensor | Basic configuration sensor max load: one | | Effective testing width | 500mm (can be widened according to customers requirement ) | | Effective tensile space | 700mm (can be increased the height according to customers
requirement) | | Testing speed | From 0.001 to 500mm/min | | Accruacy of displacement measurement | Tolerance: ±0.5% / tolerance:±0.2% | | Deformation of measured system according to the requirements | Min span:10mm, Max range of deformation 800mm Extended deformation span : 25mm, 50mm, 100mm, range of deformation
5mm, 10mm, 25mm | | Accuracy of measured deformation | Tolerance:±0.5% (according to requirement of customer to choose the
larger or small deformation) | | Safety | Electronic-limit protection | | Testing platform moving device | Arbitrarily set | | Return Back | Manual or automatic operation, After the test, the moving iron
return to initial position with the highest speed by manual or
automatic operation | | Overload protection | Overload 10%, automatic protection | | Fixture | A set of tensile clamp | | Machine size | 700*590*2000mm (L*W*H) | | Motor | Panasonic AC servo motor and drive | | Power supply | 220V,50HZ or according to the requirement | | Power | 1.5KW or 3KW (depending on different demand of force, using
different motor) | | Weight | 600 Kg |
|
Microcomputer Control Single-Armed Electronic Universal Testing
Machine
It can automatic calculate the stress, rate of elongation(need to
add with extensometers), tensile strength, elastic modulus,
automated statistical results; automatically recorded the biggest
point, breaking point, the designated point value or the rate
of elongation; Using computer to display the dynamic curves in the
testing process and process the
data, After testing, it can re-analysis and editing the data by
amplifying the curves through the graphics
processing module, printing reports, product performance reached
the international advanced level.
System configuration
1 Machine main unit
1 1 AC servo motor, driver 1 set
1.2 Speed reduce system 1set
1. 3 Load cell 1pc
1. 4 Precision precision ball screw 2sets
1. 5 Control board 1set
2 Servo control system 1set
3 Gear system 1set
4 PC 1set
5 Inkjet color printer 1set
7 Tensile test accessories 1set
Compression accessorises 1 set
Bend accessorises 1 set
8 Extensometer 1 set
9 Software installation CD 1set
10 Technical documents 1set
including : Instruction Manual
Manual of the Software
Certificate
11 Tool kit 1 set
